See exactly what you're buying

This is a real documentation report generated by PLCDocGen from an actual pump station control project. All nine sections are included.

What's inside the report

1. Controller Summary

Processor type, firmware version, program count, tag count, instruction set — everything you need to know about the controller at a glance.

2. Task & Program Structure

Hierarchical view of all tasks, programs, and routines in the project, with execution time and counts. The roadmap to your project.

3. I/O Module Map

Every I/O module by slot, with catalog number, channel count, and configuration. For handover to the controls technician.

4. Full Tag Database

Complete tag list with data types, scope (controller vs. program), initial values, and your descriptions. Searchable table, not screenshots.

5. User-Defined Data Types (UDTs)

Every UDT structure with its members, data types, and hierarchical relationships for complex tag types.

6. Add-On Instructions (AOIs)

Every AOI with parameters, local tags, enable/done/error pin behavior, and dependency chains to other AOIs.

7. Alarm & Fault Summary

All tags matching common patterns (ALM, FAULT, FLT, TRIP, ESD) grouped in one table for rationalization and review.

8. Tag Cross-Reference

Where every tag is used: program, routine, rung number, and instruction type. Unreferenced and dead-code tags flagged automatically.

9. Logic Narrative & Quality Checks

Your rung comments compiled into a readable sequence narrative, plus doc coverage metrics and undocumented tag warnings.

Report pages, unretouched

Straight out of the generator — these are pages from the downloadable sample below.

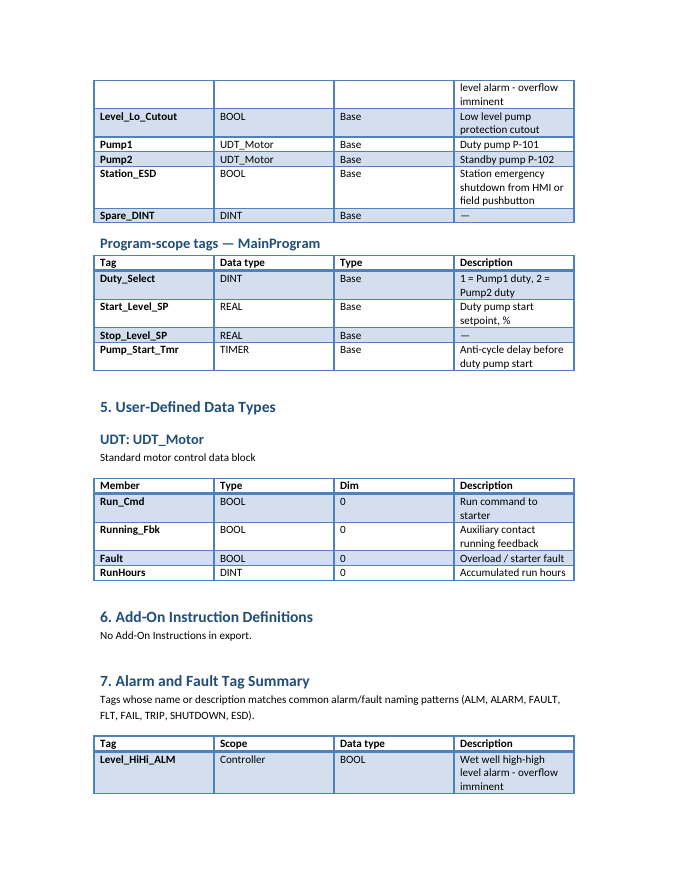

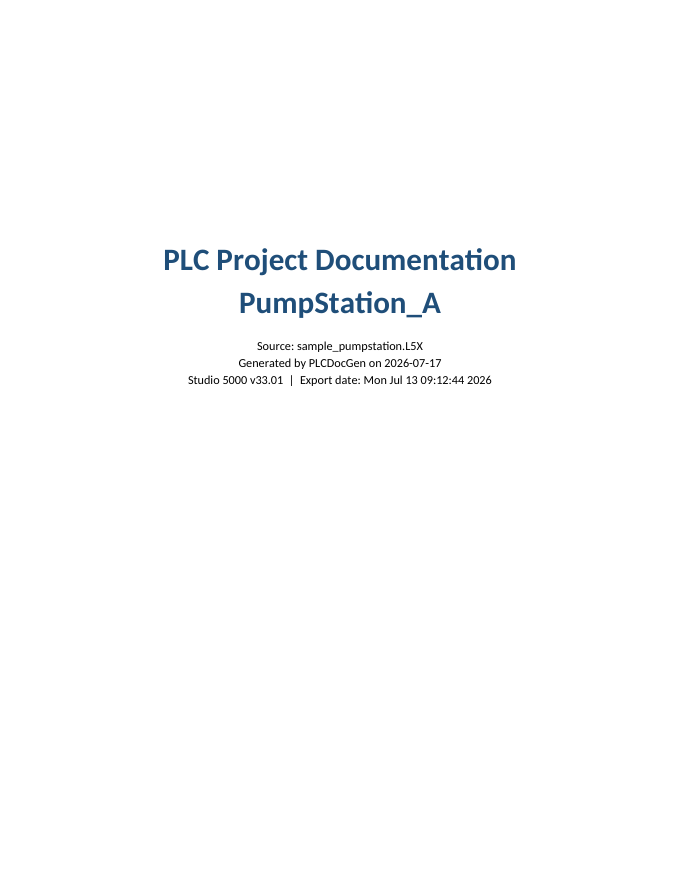

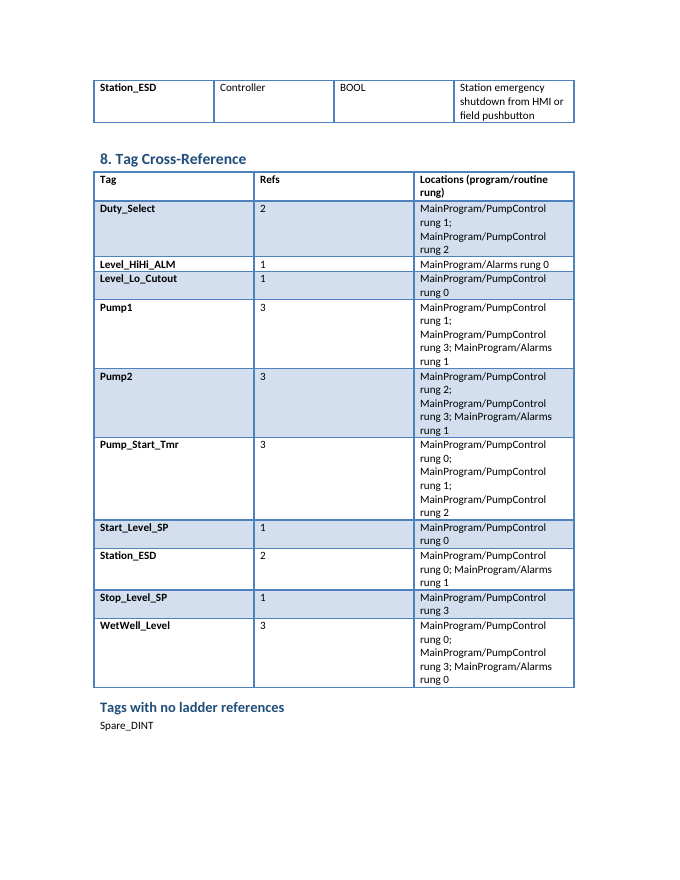

Sample report title page Controller summary, program structure, I/O map and tag database tables Tag tables and UDT documentation Alarm summary and tag cross-reference

Download the full sample report

Download PDF (Real Project)

This report was generated from a real pump station control project using PLCDocGen.

About this project: The sample report comes from a production pump station system with multiple tasks, programs, and over 200 tags. It demonstrates how PLCDocGen handles real-world complexity, including UDTs, AOIs, multiple routine types, and comprehensive cross-referencing.
